It is a Miniature Circuit Breaker. It is a current operated device. It protects against overloadand short circuit fault in electrical supply. The over load protection is achieved with thermaltripping mechanism and short circuit protection is achieved by Magnetic trippingmechanism.
01
The thermal Operation provides protection from moderate overload. Under overload condition, athermo-metallic element ( Bimetallic strip) deflects and it operates a latching mechanism allowingthe main contacts to open.
02
In magnetic operation, large overloads or short circuit current actuates a solenoid causing aplunger to strike the latching mechanism rapidly opening the main contacts.
Specifications : IS/IEC 60898-1:2002
Number of Poles : 1, 1+N, 2,3, 3+N &4
Tripping Chara. & Rated Currents (In) : B Curve – 6 – 40 Amp.
: C Curve – 6 – 63 Amp.
Rated Breaking Capacity (lm) : 10000A
Energy Limiting Class : Class 3 as per EN 60898
Rated Voltage (Ue) : Single Pole – 240/415 VAC
: Multi Pole – 415 VAC
Insulation Voltage (Ui) : 660V
Rated Frequencies : 50/60 Hz
Impulse Withstand Voltage (U imp) : 4 KV (1.2/ 50p)
Impulse Power Frequency Voltage : 2 KV (50 Hz)
Housing Material : Polybutylene Terephthalate in Grey Colour.
Degree of Protection : P20 as per IS/IEC 60898-1
Mounting Position : Any position
Mounting : Quick snap to mounting rail – 35 mm
Connecting Terminals : Combination box terminals on incoming and outgoing sides. Suitable
. for Multi core, stranded and flexible conductors up to 35 sq mm.
Electrical Service Life : Min. 20,000 make / break operations
Ambient Temperature : Tmax 55°C & Tmin. -25°C
Impact Resistance : 3g, At least 2 impacts duration 13 ms
ISOLATOR
Specifications : IS13947 Part 3 / IEC 60947-3, 1999
Number of poles : DP, TP & FP
Utilization Category : AC 22A
Rated Voltage : 240/415 VAC
Rated Current : 40 to 63 Amp.
Our team will answer all your questions. we ensure a quick response.
We are a trusted distribution board manufacturer offering safe, durable, and high-performance electrical solutions for residential, commercial, and industrial needs. As a leading low voltage distribution board manufacturer, we focus on delivering products that ensure full safety and reliability in every application.
We bring strong industry knowledge and modern engineering practices together to deliver high-quality distribution boards. Our team works with advanced tools, strict testing, and a customer-focused approach to ensure every board performs well in tough conditions.
With years of experience in electrical product design, our team understands real-world power challenges and creates boards that support safe and stable energy distribution.
We use updated technology and modern machines to manufacture distribution boards that meet today’s performance needs. This ensures long life, strong durability, and smooth operation.
Every distribution board goes through detailed testing and strict quality control. As a reliable low voltage distribution board manufacturer, we ensure each product meets safety guidelines and industry standards before delivery.

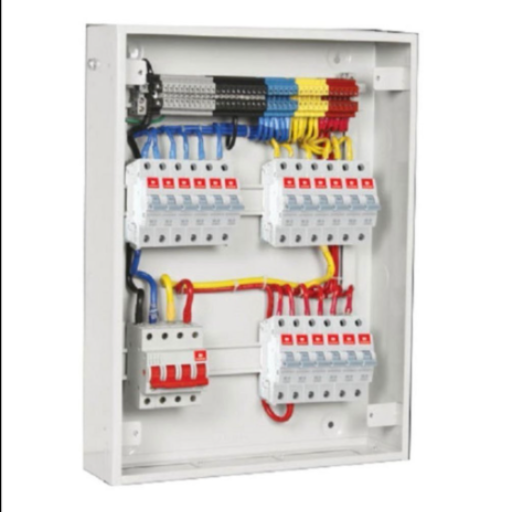

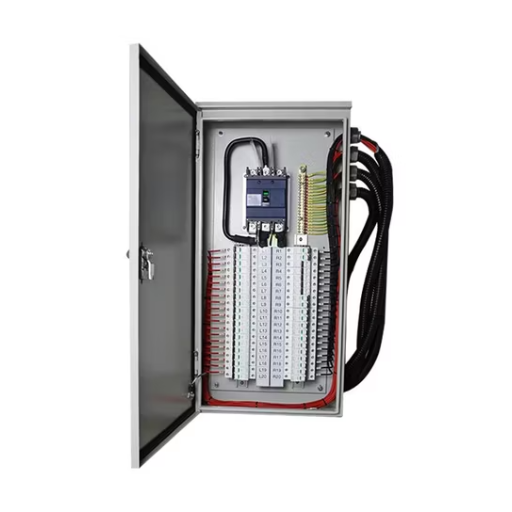

As a trusted distribution board manufacturer, we offer strong and reliable single-phase and three-phase boards designed for smooth power control. These boards ensure safe electricity flow for homes, commercial buildings, and industries.
We provide custom-built solutions made to match your project needs. Whether you need a special size, layout, or additional features, our team designs boards that fit your exact requirements with high safety and durability.

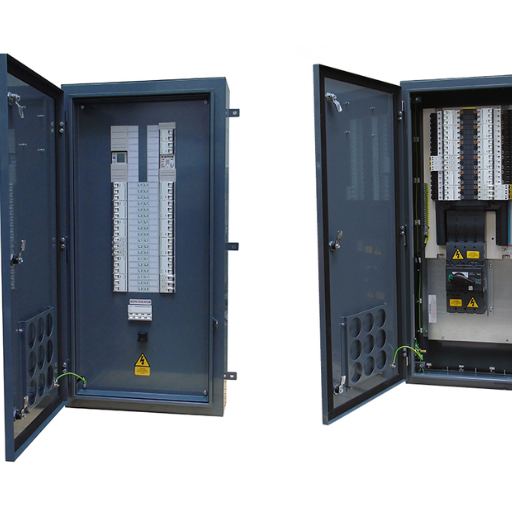

Our weatherproof and industrial-grade distribution boards are built to handle tough conditions. They offer dependable performance in outdoor areas, factories, and heavy-duty work environments.
